Pet nook / floor fit
Will an automatic litter box fit a small apartment?
A constraint-first check for renters comparing a large self-cleaning unit with a compact open pan.
PETKIT · referenceDecision snapshot
Start with the room signal.
An automatic litter box fits a small apartment only when its full operating footprint, cat-access limits, outlet, and cleaning route all clear the room.editor-assessed
Read the complete direct answer
In a small apartment, an automatic litter box is a fit decision before it is a convenience decision. Start by taping out the full operating footprint on a hard, level floor, then preserve wall, entry, outlet, and service clearance. PETKIT lists the PuraMax 2 reference unit at 24.41 by 21.18 by 21.73 inches and says to leave at least two inches between it and a wall. It also specifies a 7.87-inch entrance and a supported cat-weight range of 3.3 to 22 pounds. Treat those numbers as a reference, not proof that every cat or room will work. Choose this format only when the cat meets the maker's limits and removable parts can come out without moving furniture; otherwise, a smaller open pan is the cleaner fit.
editor-assessedBest fit signal
A hard, level floor with a nearby outlet and enough room to remove and clean the detachable parts.editor-assessed
Pause signal
Pause if the nook is carpeted or uneven, the entrance is obstructed, the cat falls outside the listed limits, or service requires moving furniture.editor-assessed
- Exterior size
- 24.41 × 21.18 × 21.73 inmanufacturer-stated
- Placement
- Hard, level floor with at least 2 in from the wallmanufacturer-stated
- Cat access
- 7.87-in entrance; listed range of 3.3–22 lbmanufacturer-stated
How we checked
Evidence before recommendation.
This page checks room constraints against 3 dated manufacturer sources. Manufacturer-stated and retailer-listed facts remain separate from editor-assessed room tradeoffs. It does not claim hands-on testing, current price, rating, stock, or universal fit.
Source boundary
3 dated sourcesEvery reference stays visible in the source trail.Decision boundary
2 reference formatsReference products anchor checks; they are not a ranked shortlist.Freshness boundary
Access dates do not guarantee unchanged specifications.Reference fit passport
Put the reference beside the room.
These reference formats make dimensions and setup constraints concrete. They do not prove that every model, room, routine, or user will fit.
PETKIT
PuraMax 2
Powered self-cleaning reference
- Exterior size
- 24.41 × 21.18 × 21.73 inmanufacturer-stated
- Placement
- Hard, level floor; at least 2 in from the wallmanufacturer-stated
- Cat access
- 7.87-in entrance; listed range of 3.3–22 lbmanufacturer-stated
- Operation
- Powered automatic cleaning with app-connected controlsmanufacturer-stated
- Maintenance
- Waste emptying, litter refill, and detachable-part cleaning remain requiredmanufacturer-stated
Best fit
A measured nook where power, entry, wall gap, and part-removal clearance all remain available.
editor-assessedFailure condition
It fails the room check on soft or uneven flooring, outside the cat-access limits, or where detachable parts cannot be serviced in place.
editor-assessed

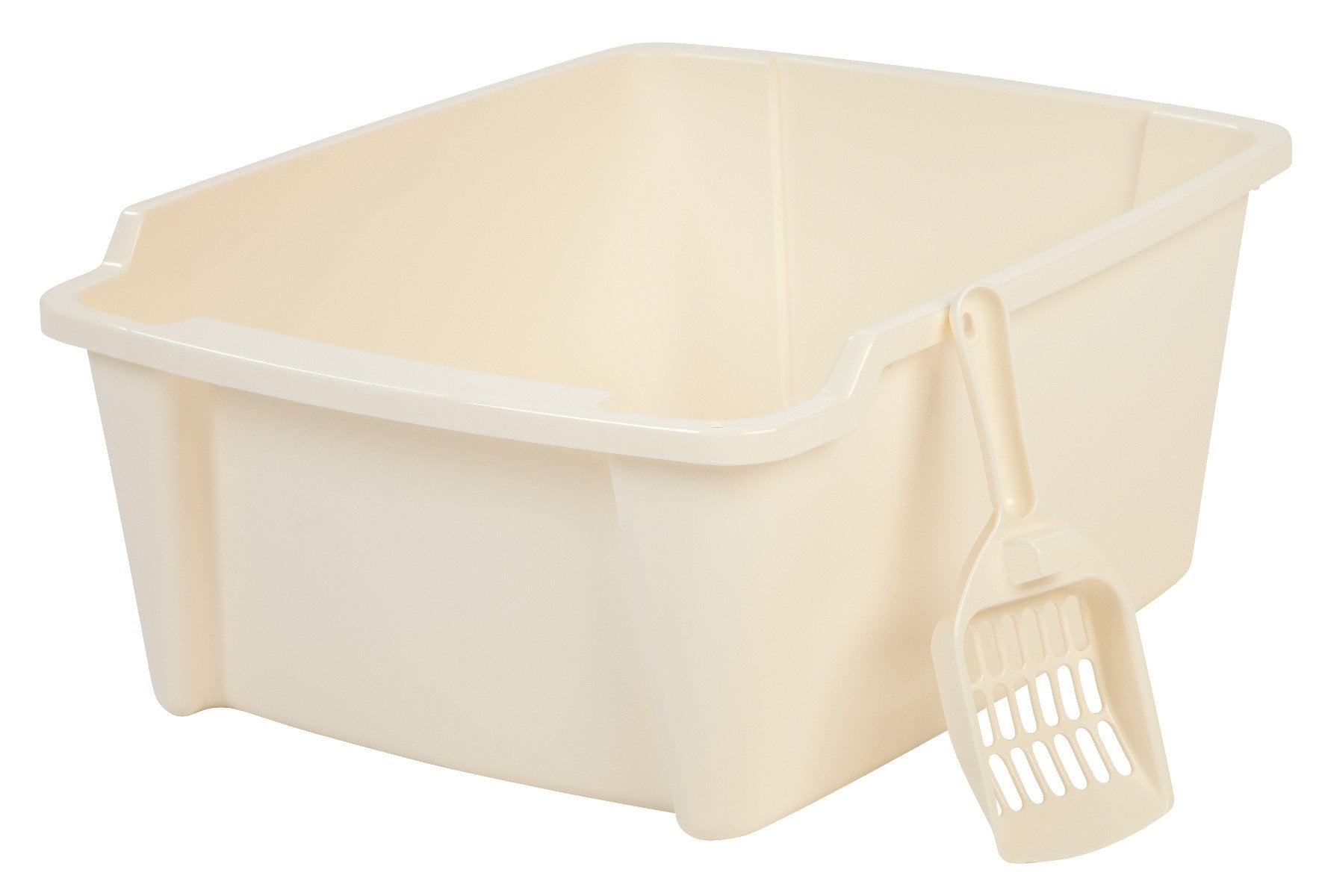

IRIS USA
Open-Top Cat Litter Pan — High Sided
Compact unpowered format reference
- Exterior size
- 18.9 × 14.9 × 7.9 inmanufacturer-stated
- Format
- Open top with high sides and an included scoopmanufacturer-stated
- Setup
- Simple unpowered vessel with no app or powered cycleeditor-assessed
- Maintenance
- Manual scooping and direct wash-and-dry accesseditor-assessed
Best fit
A tighter nook that favors a smaller vessel, direct inspection, and easy repositioning.
editor-assessedFailure condition
It is a weak fit when the household cannot sustain the manual scooping and washing routine.
editor-assessed
Constraint detail

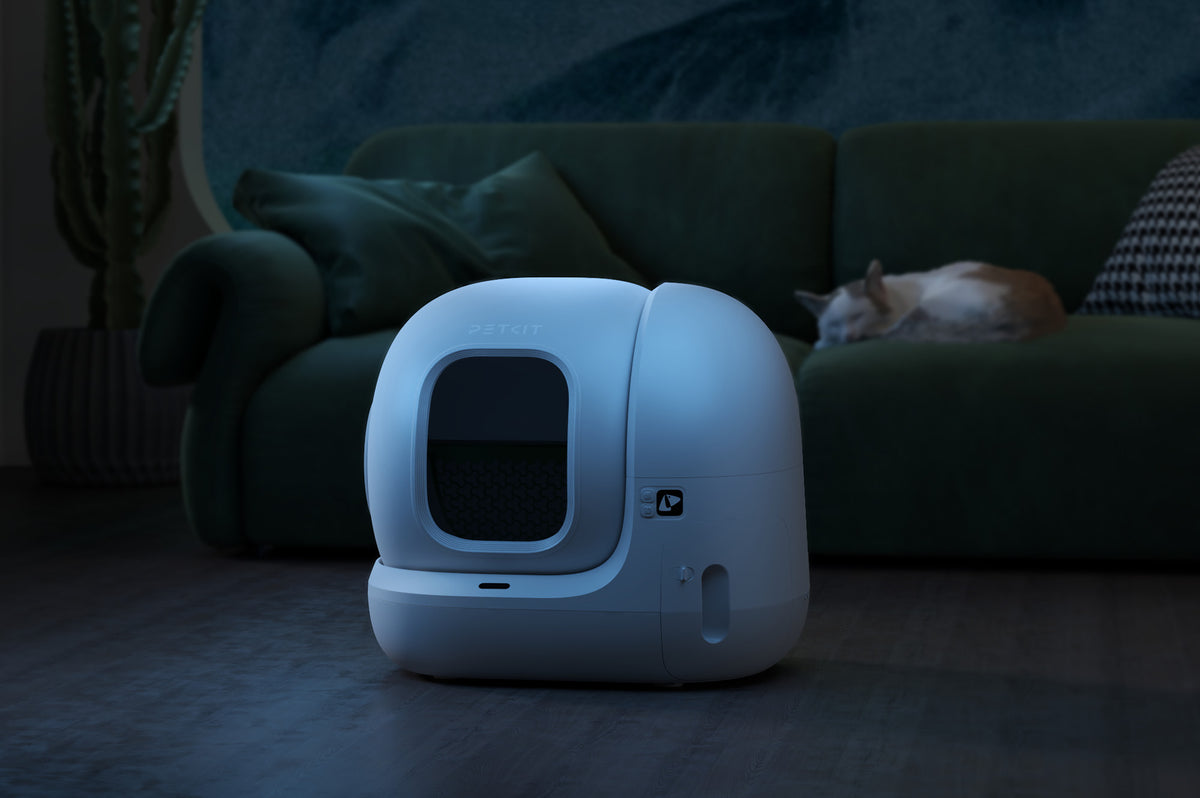

PETKIT PuraMax 2 automatic litter box illuminated in a bedroom at nightManufacturer image · reference context
Constraint detail

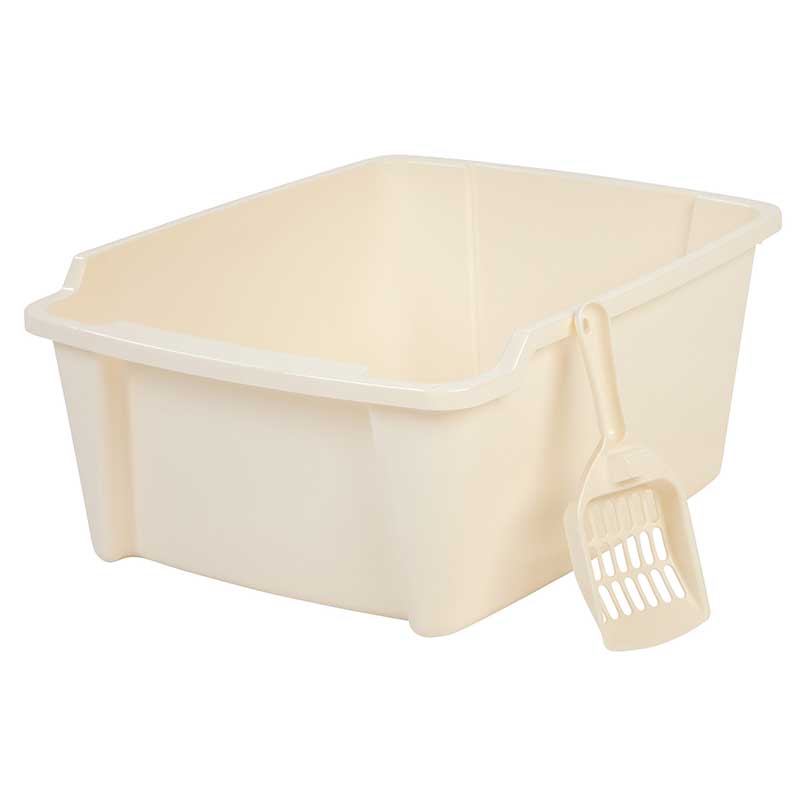

White IRIS USA high-sided litter pan and scoop shown togetherManufacturer image · reference contextFit, pause, tradeoff
The conditions that change the answer.
Best for
- A room with a hard, level floor, a nearby outlet, and a measured service zone around the unit.editor-assessed
- An adult cat that falls within the reference model's listed access and weight limits.manufacturer-stated
- A household willing to keep a waste-emptying, litter-refill, and part-washing routine even though scooping is automated.editor-assessed
Avoid if
- The only available location is carpeted, uneven, blocked at the entrance, or too tight for parts to be removed.manufacturer-stated
- Your cat is below the reference model's listed minimum weight or cannot comfortably use its entrance.manufacturer-stated
- You need a simple tray that can be lifted, washed, and repositioned without power or app setup.editor-assessed
Main tradeoff
Automatic waste cycling can reduce repeated hand-scooping, but the reference unit occupies more floor area and introduces power, sensors, moving parts, and a more structured cleaning routine.
editor-assessedConstraint table
Put the room beside the claim.
| Factor | Decision signals | Why it matters | Evidence | |
|---|---|---|---|---|
| Floor footprint | Reference check Tape out 24.41 × 21.18 inches before committing the nook. | Pause signal Doors, drawers, or walking paths cross the taped area. | Exterior dimensions do not include the human space needed to load litter, empty waste, or remove parts. | manufacturer-stated |
| Surface and wall gap | Reference check Use a hard, level surface and preserve at least two inches from the wall. | Pause signal The unit would sit on carpet, a slope, or against furniture. | The manufacturer ties level placement and clearance to accurate sensing and normal operation. | manufacturer-stated |
| Cat access | Reference check Compare the 7.87-inch entrance and 3.3–22 pound range with each cat. | Pause signal A kitten or mobility-limited cat falls outside a comfortable entry plan. | A machine can fit the room while still being a poor physical fit for the animal using it. | manufacturer-stated |
| Cleaning access | Reference check Confirm the cylinder and other detachable parts can be removed and dried nearby. | Pause signal The only route to a sink requires tipping or dragging the assembled unit. | Automatic cycling does not eliminate waste-bin service or periodic part cleaning. | manufacturer-stated |
Before opening a listing
Run the physical check.
- Tape the exterior footprint plus the two-inch wall gap on the intended floor.
This reveals conflicts with doors and circulation before a heavy unit arrives.
manufacturer-stated - Walk the waste-bin and washable-parts route from the nook to the disposal and sink areas.
The maintenance path can be more restrictive than the parked footprint.
editor-assessed - Confirm every cat's weight, entry comfort, and willingness to transition before enabling automatic cycles.
The reference model publishes a weight range and separate kitten guidance.
manufacturer-stated - Keep an open-pan fallback during the transition period.
A familiar alternative prevents the room plan from depending on immediate adoption of a new format.
editor-assessed
Known limits
What this page cannot prove.
- We have not measured this unit in the user's room or observed an individual cat using it.editor-assessed
- Manufacturer dimensions describe the product, not the full service and walking clearance a particular layout needs.editor-assessed
- Automation does not remove the need to inspect the box, empty waste, replenish litter, and clean detachable parts.manufacturer-stated
Buyer questions
Questions that deserve a direct answer.
Can the PuraMax 2 sit directly on carpet?
PETKIT says to use a firm, level surface and warns against soft, uneven, or unstable flooring. If carpet is the only location, this reference model does not pass the placement check as stated. manufacturer-stated
How much wall clearance should I plan?
The manufacturer says to keep at least two inches between the unit and the wall. Also reserve enough front and side access for routine service. manufacturer-stated
Does self-cleaning mean maintenance-free?
No. The waste container still needs emptying, litter needs replenishing, and detachable parts need periodic cleaning and complete drying before reassembly. manufacturer-stated
Will it work without Wi-Fi?
PETKIT says preset operation can continue after a network loss, but app usage data will not update while the connection is unavailable. manufacturer-stated
Is an open pan automatically better for a studio?
Not automatically, but the IRIS reference pan has a smaller listed exterior footprint and no powered mechanism. Compare that simplicity with your tolerance for hand-scooping and litter scatter. editor-assessed
Visible evidence
Source trail.
Source access dates describe when frmedit reviewed the page. They do not prove that a merchant term, model, or specification has remained unchanged since then.
Accessed 2026-08-24
PETKIT Automatic Litter Box Guide — PuraMax 2 Section
PETKIT · Supports: Listed exterior dimensions, unit weight, entrance height, and supported cat-weight range, PuraMax 2 entrance, supported cat range, waste system, and app-connected operation, Clumping-litter guidance and detachable cleaning-part overview
Accessed 2026-08-24
PURA MAX 2 Self-Cleaning Cat Litter Box User Manual
PETKIT · Supports: Manufacturer dimensions, floor placement, wall clearance, and setup instructions, Automatic-cleaning controls and user maintenance boundaries, Cat-access, connection-loss, and model-identity details for the PuraMax 2 reference unit
Accessed 2026-08-24
Open-Top Cat Litter Pan — High Sided
IRIS USA · Supports: Listed exterior dimensions for a compact open-pan reference, Open-top, high-sided construction and included scoop, Polished interior and molded base details
Useful next step
Keep the room in the decision.
Re-run the room check when your layout changes, print the checklist, or compare a related format before deciding.
